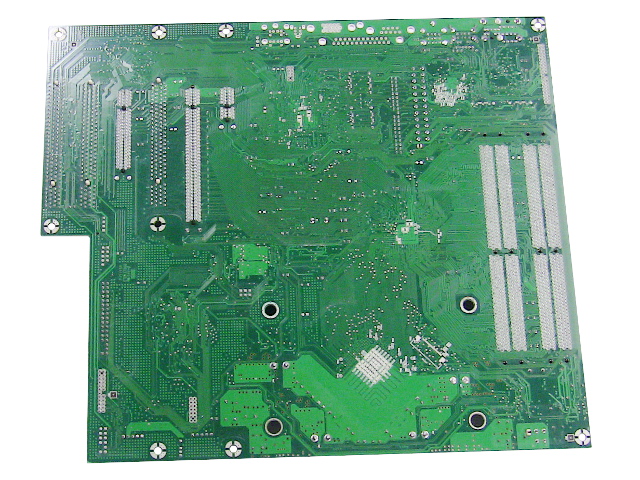

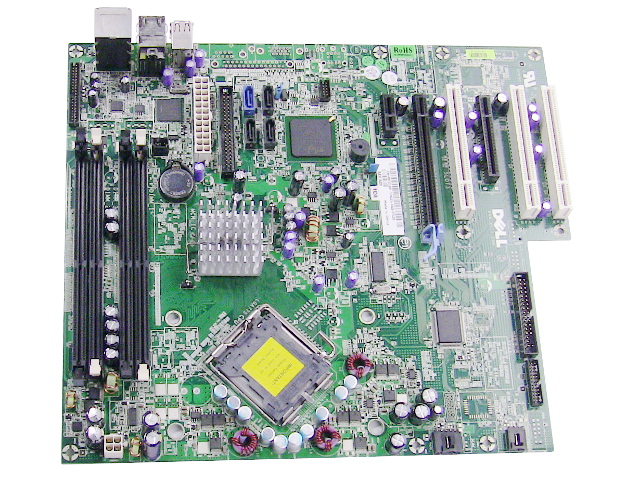

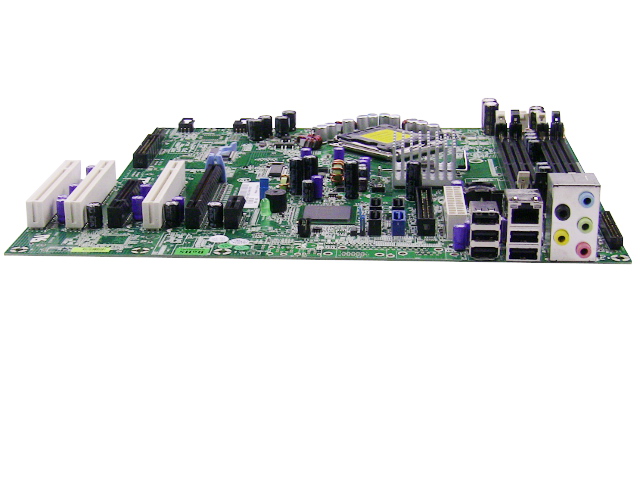

For Dell Dimension 9150 Desktop Motherboard System Mainboard – FJ030
For Dell Dimension 9150 Desktop Motherboard System Mainboard – FJ030
Compatible For Dell Desktop Systems:
Dimension 9150 Desktop
XPS 400 Desktop
DP/N: FJ030, 0FJ030
CPU Socket: LGA 775
System Chipset: Intel 945P
Video Type: PCI Express
Audio Type: Internal 7.1 channel or PCI option cards
Expansion Bus-
Bus type:
PCI 32 bit
PCI Express x1, x4, and x16
Bus speed
PCI: 33 MHz
PCI Express:100 MHz
Bus throughput
PCI Express:
x1 slot bidirectional speed – 500 MB/s
x4 slot bidirectional speed – 2 GB/s
x16 slot bidirectional speed – 8 GB/s
PCI-
connectors: three
connector size: 120 pins
connector data width (maximum): 32 bits
PCI Express-
connector: one x1
connector size: 36 pins
connector data width (maximum): 1 PCI Express lane
PCI Express-
connector: one x4
connector size: 98 pins
connector data width (maximum): 4 PCI Express lanes
PCI Express-
connector: one x16
connector size: 164 pins
connector data width (maximum): 16 PCI Express lanes
Drives-
Externally accessible:
two 3.5-inch drive bays (FlexBay)
two 5.25-inch drive bays
Available devices:
serial ATA drives (2), floppy drive, USB memory devices, CD drive, CD-RW drive, DVD drive, DVD-RW drive, Media Card Reader, and DVD/CD-RW combo drive
Internally accessible: two 3.5-inch hard-drive bays
——–
External connectors:
IEEE 1394: one front-panel 6-pin serial connector (with optional card)
Video: 15-pin VGA connector; 28-pin DVI connector
Network adapter: RJ-45 connector
USB: two front-panel and five back-panel USB 2.0-compliant connectors
Audio: five back-panel connectors for line-in, line-out, microphone,
surround, and center/Low Frequency Effects (LFE) channel; two front-panel connectors for headphones/microphone
System board connectors:
Primary IDE drive: 40-pin connector on PCI local bus
Serial ATA: four 7-pin connectors
FlexBay Drive: USB 10-pin header for optional floppy drive or optional Media: Card Reader (3.5-inch bay devices)
Fan: 5-pin connector
PCI: three 120-pin connectors
PCI Express x1: 36-pin connector
PCI Express x4: 98-pin connector
PCI Express x16: 164-pin connector
Part Number FJ030
Condition Refurbished
Item Weight 2.2 lb(s).
Chipset Intel
Video Graphics Upgradable (video card not included)
Warranty One (1) Year
Item Category Motherboard
