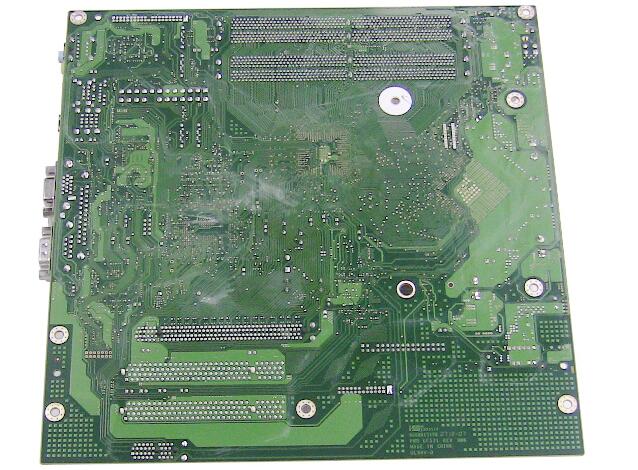

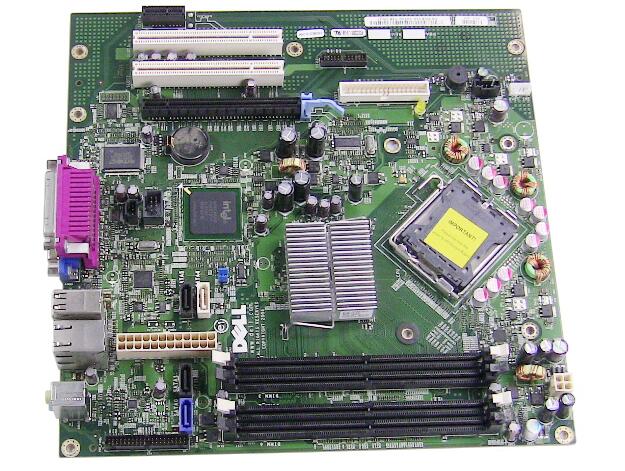

For Dell Optiplex 745 MDT Desktop Motherboard – HR330

For Dell Optiplex 745 MDT Desktop Motherboard – HR330

Compatible For Dell Desktop Systems:
-OptiPlex 745 (Mini Tower Form Factor)

DP/N: HR330, 0HR330

CPU Socket Type: LGA 775 Socket (CPU Not Included)
Memory: 4 Slots DDR2 (Memory Not Included)
Chipset: Intel Q945
Video: Intel GMA 3000 (Integrated)

Internal Ports:
1 – PCI-E x 16
1 – PCI-E x 1
2 – PCI
1 – IDE
4 – SATA

External Connector Ports:
1 – VGA
1 – Serial
1 – Parallel
1 – RJ-45
1 – Audio I/O
6 – USB 2.0

Part Number HR330
Condition Refurbished
Item Weight 2.35 lb(s).
Chipset Intel
Video Graphics Upgradable (video card not included)
For Dell Description PRINTED WIRING ASSY, PLANAR (MOTHERBOARD), MATRIX,SMITH,MINI TOWER, DESKTOP, OPTIPLEX, Pentium M Dothan, 1.8GHZ, 2 MEGB, 400FSB, V2
Warranty One (1) Year
